How to Build a Rotary Phase Converter: A 3-Step DIY Guide

Meta Description: Learn how to build a rotary phase converter (RPC) with this comprehensive DIY guide. We break down the process into three simple steps, covering safety precautions, component selection, and testing. Save money and gain a deeper understanding of three-phase power.

Introduction:

Need three-phase power but don’t want the hefty price tag of a commercial unit? Building your own rotary phase converter (RPC) might be the perfect solution. While it sounds complex, this detailed guide simplifies the process into three manageable steps. This DIY project empowers you to generate three-phase power from a single-phase source, ideal for powering larger machinery in workshops, farms, or small industrial settings. We’ll cover everything from selecting components to testing your finished RPC, guiding you safely and effectively through the process.

Step 1: Understanding Rotary Phase Converters and Gathering Your Materials

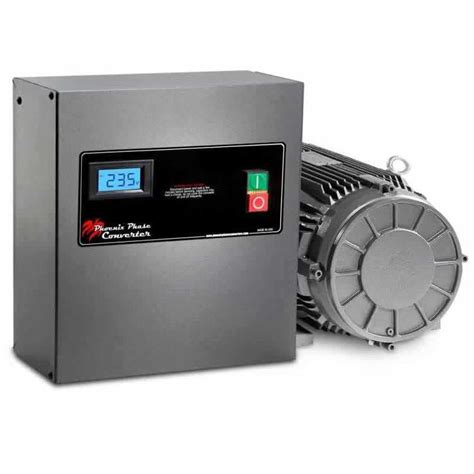

A rotary phase converter is a device that converts single-phase AC power to three-phase AC power. It achieves this by using an induction motor as a phase-shifting device. The motor’s rotating magnetic field creates a third phase, providing the necessary three-phase power supply. This is vastly different from a static phase converter, which utilizes capacitors and other simpler components, but often provides less-stable and less-robust power. While simpler to construct, static converters are often unsuitable for high-power applications.

Choosing the Right Motor: The Heart of Your RPC

The motor you select forms the foundation of your rotary phase converter. It should be a three-phase induction motor, ideally designed for continuous duty operation and rated for a slightly higher horsepower than your intended load. Consider these factors:

Horsepower (HP): Overestimate your needs; a larger motor provides more stable power output.
Voltage: Choose a motor compatible with your single-phase input voltage.
RPM (Revolutions Per Minute): The RPM affects the output frequency; a higher RPM translates to a higher frequency.
Full-Load Amps (FLA): This will determine your required start capacitors.

Essential Components for Your RPC Build:

Three-phase Induction Motor: (See selection criteria above)
Single-phase Motor Starter: This protects the motor from overcurrent and voltage spikes.
Capacitors: Starting capacitors and potentially run capacitors are necessary. The required capacitance will depend on the motor’s FLA. Consult a capacitor sizing chart for accurate calculations. [Link to a reputable capacitor sizing chart]
Wiring (Heavy Gauge): Use appropriately sized wiring to handle the high current demands of your RPC.
Enclosures and Mounting Hardware: Protect your components and ensure secure mounting.
Multimeter: Essential for testing voltage and current during assembly and operation.

Step 2: Wiring Your Rotary Phase Converter

This step requires careful attention to detail and safety. Incorrect wiring can cause damage to equipment or even injury. Always disconnect power before working with electrical components.

Safety Precautions: Working with Electricity

Disconnect Power: Always disconnect the power source before beginning any wiring work.
Use Proper Tools: Utilize insulated tools to prevent electric shock.
Double-Check Wiring: Verify all connections before applying power.
Consult an Electrician: If you are unsure about any aspect of the wiring, consult a qualified electrician.

Wiring Diagram and Connection Steps:

A clear wiring diagram is crucial. (Include a simple, clear wiring diagram here. This requires a visual element, which cannot be directly created in this text-based format. The diagram should show the connections between the single-phase input, the motor, the starting capacitor(s), and the three-phase output).

Connect the single-phase power to the motor starter.
Wire the motor’s windings to the motor starter. Pay close attention to terminal labels (U, V, W).
Connect the starting capacitors correctly (according to your chosen configuration and motor specifications).
Connect the output leads (U, V, W) and ground from the motor to your external circuit.
Secure all wiring to prevent shorts or loose connections.

Step 3: Testing and Troubleshooting Your Rotary Phase Converter

Before connecting any high-power equipment to your new rotary phase converter, thoroughly test it to ensure proper functionality and safety.

Testing Procedures:

Voltage Test: Use a multimeter to test the voltage at each of the three-phase outputs. They should be approximately equal and within the expected voltage range.
Current Test: Measure the current draw of the RPC under no-load conditions.
Load Test: Gradually apply a load to your RPC, monitoring voltage and current to prevent overloading. Start with a small load and increase it slowly.
Temperature Monitoring: Check the temperature of the motor and capacitors under load. Excessive heat indicates a problem.

Troubleshooting Common Issues:

Unequal Voltages: This could indicate a problem with the wiring or capacitors. Recheck the wiring diagram and capacitor values.
Overheating: Overheating may be due to an overload, faulty capacitors, or a problem with the motor’s ventilation.
Low Output Voltage: This could indicate insufficient capacitance or a problem with the motor itself.

Advantages of Building Your Own RPC

Cost Savings: Building your own rotary phase converter can be significantly more cost-effective than purchasing a commercial unit.
Customization: You can customize your RPC to meet your specific power requirements.
Educational Value: Constructing your own RPC provides a valuable learning experience in electrical engineering principles.

Disadvantages of Building Your Own RPC

Complexity: Building an RPC requires electrical knowledge and skills.
Safety Risks: Incorrect wiring or component selection can lead to dangerous situations.
Potential for Inefficiency: Home-built RPCs might not be as efficient as commercially available units.

Rotary Phase Converter Applications

RPCs find many uses in situations where three-phase power is preferred or required:

Powering Large Machinery: Lathes, mills, and other workshop equipment often require three-phase power.
Agricultural Equipment: Some farming equipment operates more effectively on three-phase power.
Industrial Applications: Smaller industrial settings may benefit from a custom-built RPC.

Frequently Asked Questions (FAQs)

Q1: Is it safe to build a rotary phase converter? A1: Building an RPC involves working with electricity, which poses inherent safety risks. Follow all safety precautions carefully, and if you’re unsure about any aspect of the process, consult a qualified electrician.

Q2: What size motor should I use for my RPC? A2: The motor size should be slightly larger than the total horsepower of the equipment you intend to power. Overestimating the size provides a more stable power supply.

Q3: How do I calculate the required capacitance for my RPC? A3: Capacitor sizing depends on the motor’s FLA (Full-Load Amps). Refer to reputable capacitor sizing charts or consult electrical engineering resources for appropriate calculations. [Link to a reputable source for capacitor calculations]

Q4: Can I use a static phase converter instead of a rotary phase converter? A4: Static phase converters are simpler to build, but they typically provide less stable power and are unsuitable for high-power applications. Rotary phase converters are generally preferred for more demanding loads.

Conclusion: Powering Your Projects with a DIY Rotary Phase Converter

Building your own rotary phase converter is a worthwhile endeavor for those with electrical expertise and the desire to save money on three-phase power solutions. By following these steps and prioritizing safety, you can successfully construct a reliable RPC to power your workshop, farm equipment, or small industrial applications. Remember to always prioritize safety, check your wiring multiple times, and refer to authoritative sources for guidance on capacitor sizing and motor selection. Start your project today and unlock the power of three-phase electricity!

Call to Action: Ready to build your own RPC? Download our free checklist for gathering materials and a more detailed wiring diagram! [Link to a hypothetical checklist/diagram download]

Building a rotary phase converter, as detailed in this three-step guide, offers a viable solution for those needing three-phase power in situations where it’s unavailable. However, remember that this process requires a degree of electrical expertise and comfort working with potentially hazardous voltages. Therefore, before undertaking this project, it’s crucial to assess your own skills and knowledge. If you lack confidence in your abilities, consulting with a qualified electrician is strongly advised. Safety should always be your paramount concern. Furthermore, always ensure you adhere to all relevant electrical codes and regulations in your area. These codes vary by location, and neglecting them can lead to significant safety hazards, including electrical shocks, fires, and equipment damage. Consequently, thorough research and planning are essential prerequisites before commencing any work. In addition to safety considerations, proper component selection is critical for the reliable operation of your rotary phase converter. Using low-quality or mismatched components can lead to poor performance, reduced efficiency, and even premature failure. Thus, sourcing your materials from reputable suppliers is paramount. Finally, after assembly, thorough testing and verification of the converter’s output voltage and balance are necessary before connecting it to any equipment. Improperly tested converters can damage connected machinery. In essence, while this guide provides a comprehensive overview, responsible execution necessitates careful attention to detail and a commitment to safety protocols.

This DIY project, while potentially cost-effective, requires careful consideration of several factors beyond the construction process itself. For instance, the size and capacity of the rotary phase converter you build will directly impact its suitability for specific applications. Moreover, determining the power requirements of the intended three-phase equipment is essential to prevent overloading the converter. Overloading can lead to overheating, damage to the converter, and potential fire hazards. Similarly, the size and type of motor selected for the rotary phase converter greatly influences its performance and efficiency. A poorly chosen motor can result in significant voltage imbalances and harmonic distortion, negatively impacting the performance of connected equipment. In addition, the proper grounding of the converter is crucial for safety and ensuring its proper operation. Inadequate grounding can lead to electrical shocks and equipment malfunctions. In other words, a successful build depends not only on following the steps outlined but also on a comprehensive understanding of the underlying electrical principles involved and the specific needs of your application. This understanding ensures the converter operates effectively and safely. Therefore, thorough research and planning are critical steps in the process, ensuring a safe and successful outcome.

Ultimately, the success of your rotary phase converter relies on meticulously following the instructions provided and prioritizing safety throughout the entire process. Nevertheless, remember that this guide serves as a starting point; individual needs may require modifications or adaptations. Therefore, it’s highly recommended to consult additional resources and seek professional guidance if you encounter any uncertainties or challenges. Specifically, understanding the intricacies of electrical systems can significantly improve your ability to troubleshoot and resolve any problems that might arise during or after the construction phase. Consequently, continuing your education in this area will benefit you long after the completion of this project. Beyond the technical aspects, obtaining the necessary permits and approvals before installation is legally mandated in many jurisdictions. Non-compliance can result in significant penalties. In conclusion, while building a rotary phase converter can be a rewarding experience, remember that safety and compliance with all relevant regulations must remain paramount. Only with careful planning, execution, and attention to detail can you successfully build a reliable and safe rotary phase converter that meets your specific needs.
