How to Read a Circuit Breaker: 5 Easy Steps
Meta Title: How to Read a Circuit Breaker: A Complete Guide for Homeowners
Meta Description: Learn how to safely read and interpret your circuit breaker panel with our easy-to-follow guide. Understand breaker types, amperage ratings, and troubleshooting tips for common electrical issues.
Electricity powers our modern lives, but it can also be dangerous if mishandled. Understanding your home’s electrical system is crucial for safety and efficient energy management. One of the most important components of this system is the circuit breaker. This comprehensive guide will teach you how to read a circuit breaker, empowering you to better understand and maintain your home’s electrical safety.
1. Locating Your Circuit Breaker Panel
Before you can learn how to read a circuit breaker, you first need to find your electrical panel. This is usually a metal box, often located in a garage, basement, hallway closet, or utility room. It’s often unassuming – it might blend in with the surrounding walls. Look for a metal door with a visible panel of switches or breakers. Never attempt to work with your electrical panel if you are unsure of its location or if you are uncomfortable working with electricity.
Identifying Your Panel Type
Circuit breaker panels come in two main types: older fuse boxes and newer circuit breaker panels. While this article focuses on circuit breakers, understanding the difference is crucial. Fuse boxes use fuses that melt and require replacement, while circuit breakers can be reset. If you have a fuse box, it’s highly recommended to upgrade to a modern circuit breaker panel for enhanced safety and convenience. A qualified electrician can advise on this upgrade.

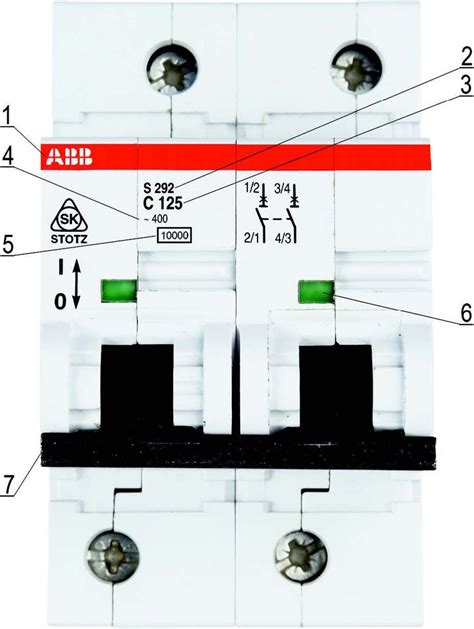

2. Understanding Circuit Breaker Components
A typical circuit breaker has several key components you need to understand:
- Switch Handle: This is the lever you flip to turn the circuit on or off.
- Number/Label: Each breaker is usually numbered or labeled, corresponding to a specific circuit in your home (e.g., kitchen outlets, bathroom lights). Some panels have detailed labels, others just numbers.
- Amperage Rating: This number (e.g., 15A, 20A) indicates the maximum current the circuit can handle before tripping. Higher amperage ratings usually mean the circuit powers more demanding appliances.
- Trip Indicator: Many breakers have an indicator (often a small red button that is pushed in when the breaker is tripped).
3. Interpreting the Circuit Breaker Labels
Your circuit breaker panel’s labels are your roadmap to understanding your home’s electrical system. Each breaker controls a specific circuit, powering different outlets, lights, or appliances.
Deciphering cryptic labels
Some labels might be cryptic, using abbreviations or numbers only. Referring to your home’s electrical plan (if available) can be invaluable. You might also try tracing which circuits are affected when you switch certain breakers on and off. However, Always proceed with caution – never work with electricity if you’re unsure about what you’re doing.
4. Understanding Amperage Ratings and Circuit Loads
The amperage rating (A) on each circuit breaker is crucial. This indicates the maximum electrical current the circuit can safely handle. Exceeding this limit can cause overheating, fire hazards, and blown breakers. For example, a 15A breaker is typically sufficient for lighting circuits, while a 20A breaker might be necessary for heavy-duty appliances like ovens or air conditioners. Overloading a circuit by plugging in too many high-wattage appliances can trip the breaker.
Calculating load
You can roughly estimate the load on a circuit by adding up the wattage of all appliances connected to it. However, this is an estimation, and consulting a qualified electrician to assess your electrical load is recommended.
5. Identifying Tripped Circuit Breakers
A tripped circuit breaker is indicated by a switch handle that is in the “off” position, and often it is in a different position from the rest (for example, midway between on and off).
Resetting a tripped breaker
To reset, simply switch the breaker back to the “on” position. If it immediately trips again, this indicates an overload or a short circuit. In that instance, unplug some appliances or fixtures connected to that circuit and try resetting again.
6. Troubleshooting Common Circuit Breaker Problems
If a circuit breaker repeatedly trips, there’s an underlying issue that requires attention. Common causes include:
- Overloaded circuit: Too many appliances drawing power from the same circuit.
- Short circuit: Faulty wiring or damaged appliances causing an electrical fault.
- Ground fault: A current leakage to ground, often caused by faulty appliances or damaged wiring. GFCI breakers are designed to protect against ground faults.
When to call an electrician
If you can’t identify the cause of repeated tripping, or if you’re uncomfortable troubleshooting electrical problems, it’s crucial to contact a qualified electrician. Attempting to fix electrical issues without proper knowledge can be dangerous and potentially lead to further damage or injury.
7. Different Types of Circuit Breakers
While most homes use standard circuit breakers, you might encounter specialized types:
- Ground Fault Circuit Interrupters (GFCIs): These breakers protect against electrical shocks by quickly shutting off power in case of a ground fault. They’re commonly found in bathrooms, kitchens, and outdoors.
- Arc-Fault Circuit Interrupters (AFCIs): These breakers detect and interrupt potentially dangerous electrical arcs that can cause fires. They are increasingly common in bedrooms and living areas.
- Dual Function Breakers: which combine the functions of GFCI and AFCI protection.
8. Maintaining Your Circuit Breaker Panel
Regular inspection of your circuit breaker panel is crucial for safety. Look for any signs of damage, loose wires, or overheating. Keep the panel clean and free of debris. Never overload circuits or attempt repairs without professional help.
FAQ
Q1: What does it mean when my circuit breaker keeps tripping?
A1: A repeatedly tripping breaker usually signifies an overload, short circuit, or ground fault. Identify the appliances on that circuit, and unplug some to see if this resolves the issue. If it persists call an electrician.
Q2: Can I replace a circuit breaker myself?
A2: While it may seem like a simple task, replacing a circuit breaker incorrectly can be dangerous. It’s highly recommended to contact a qualified electrician, especially if you lack electrical experience.
Q3: What is the difference between a 15A and a 20A circuit breaker?
A3: A 20A breaker handles higher amperage than a 15A breaker, allowing it to power more demanding appliances. Choosing the correct amperage rating is crucial for safety and efficiency.
Q4: How often should I inspect my circuit breaker panel?
A4: It’s recommended to visually inspect your panel at least once a year for any signs of damage or loose connections.
Conclusion
Understanding how to read a circuit breaker is a crucial skill for every homeowner. By learning to identify breaker components, interpret labels, and troubleshoot common problems, you can enhance your home’s electrical safety and prevent potential hazards. Remember, while this guide provides valuable information, always prioritize safety and consult a qualified electrician for any repairs or significant electrical work. Regular inspection of your circuit breaker panel is key to preventing electrical problems and ensuring the safety of your home and family. Take the time to understand your electrical system – it’s an investment in your peace of mind.
Call to Action: Schedule a consultation with a qualified electrician today to ensure your home’s electrical system is safe and efficient! [Link to a local electrician service or general electrical safety website] [Link to a reputable online electrical supply store] [Link to another relevant article on home safety]
Understanding your home’s circuit breaker panel is crucial for safety and efficient home maintenance. Therefore, mastering the skill of reading a circuit breaker is a valuable life skill, allowing you to quickly identify and resolve electrical issues before they escalate into bigger problems. This guide has presented five easy steps to help you accomplish just that, guiding you through the process of identifying the main panel, understanding breaker labeling, recognizing tripped breakers, safely resetting a breaker, and finally, knowing when to call a professional electrician. Remember that while these steps provide a solid foundation, electrical work can be hazardous, so always prioritize caution and safety. Furthermore, it’s important to remember that each home’s electrical system is unique, and the specific layout and features of your breaker panel may differ slightly from the examples provided. Consequently, if you are unsure at any point, it’s always best to err on the side of caution and contact a qualified electrician for assistance. In addition to the steps outlined, consider keeping a labeled diagram of your circuit breaker panel near your breaker box for quick reference. This proactive approach will considerably streamline troubleshooting efforts in the future. Nevertheless, even with a diagram, never attempt repairs beyond your skill level. Instead, always consult a qualified professional for major electrical work.
Following the steps outlined in this article will empower you to handle minor electrical issues independently. However, it’s equally important to understand the limitations of this knowledge. For instance, while resetting a tripped breaker is often a simple solution, repeated tripping of the same breaker could indicate a more serious underlying problem, such as a short circuit or overloaded circuit. Similarly, while understanding breaker labeling is helpful for identifying the affected circuit, it doesn’t necessarily diagnose the root cause of the problem. In such cases, attempting repairs without proper training or experience could lead to further damage or, more seriously, electrical shock or fire. Moreover, working with electricity involves potential hazards, and even seemingly simple tasks can pose risks if not approached correctly. Consequently, familiarizing yourself with basic electrical safety practices, such as turning off power at the main breaker before working on any electrical components, is essential. Additionally, understanding the different types of circuit breakers and their functions provides a fuller picture of your home’s electrical system and empowers you to make more informed decisions concerning electrical repairs or upgrades. Always remember that safety should be your top priority when working with electricity.
In conclusion, the ability to read a circuit breaker is a valuable skill for every homeowner. By carefully following the five steps detailed in this article, you can increase your understanding of your home’s electrical system and potentially resolve minor issues without professional assistance. Nevertheless, remember that this guide provides basic knowledge, and it is crucial to recognize the limitations of self-repair. Specifically, safety must always be paramount. Only attempt tasks within your capabilities, and don’t hesitate to call a qualified electrician for any significant problems or if you’re uncertain about any part of the process. Ultimately, prioritizing safety and knowing when to seek professional help will ensure the long-term safety and reliability of your home’s electrical system. Furthermore, continuous learning about your home’s electrical system can improve your understanding and preparedness in dealing with electrical issues effectively and safely. Regular inspection of your circuit breaker panel is also recommended, as this preventative approach can help to identify potential problems early on. Therefore, take the time to learn more about your home’s electrical system; it’s an investment in your safety and peace of mind.
.
